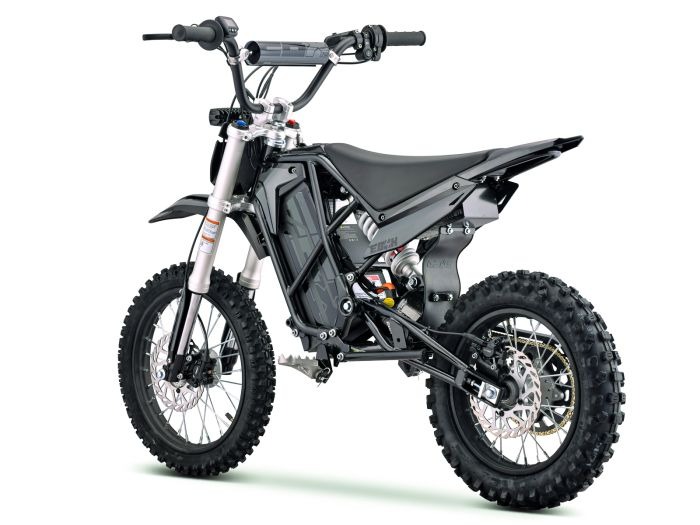

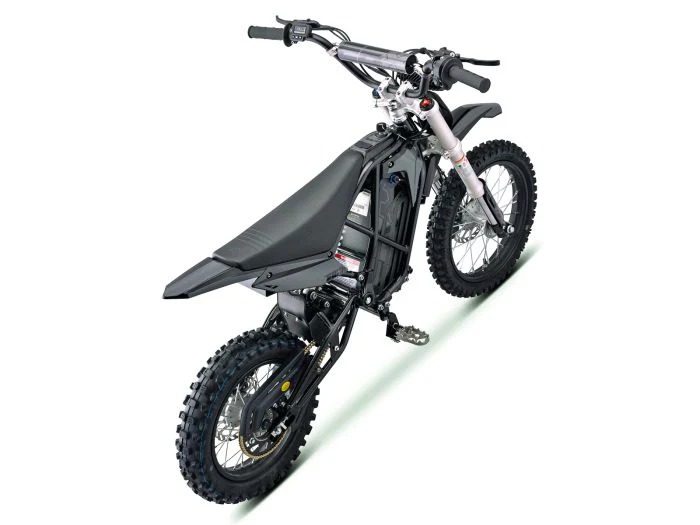

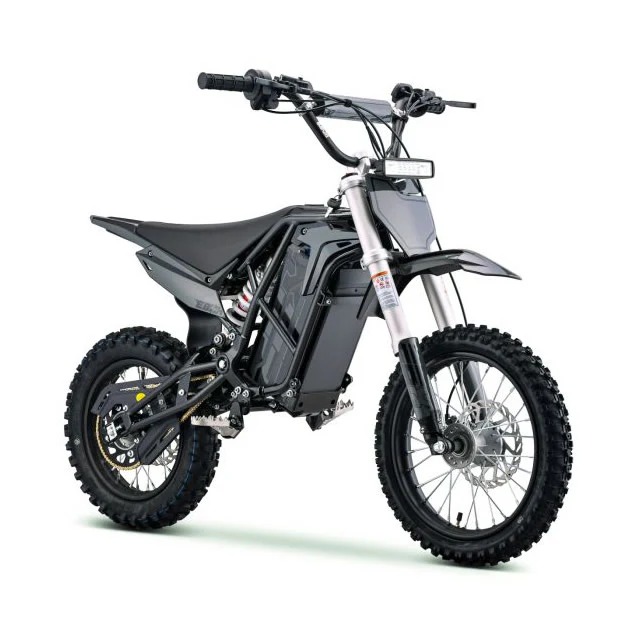

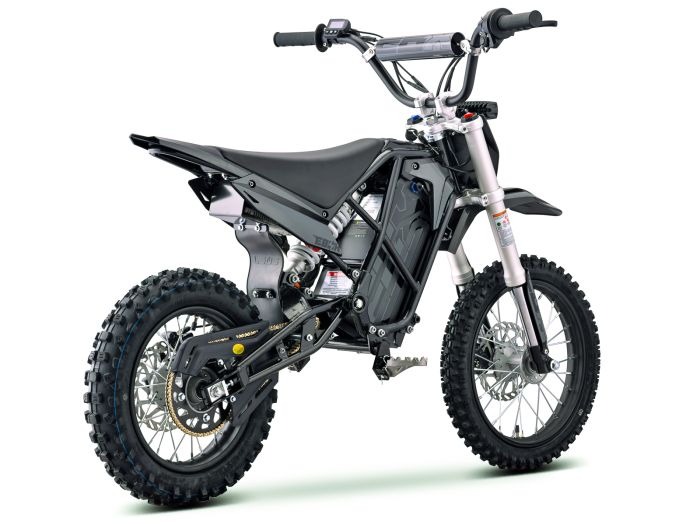

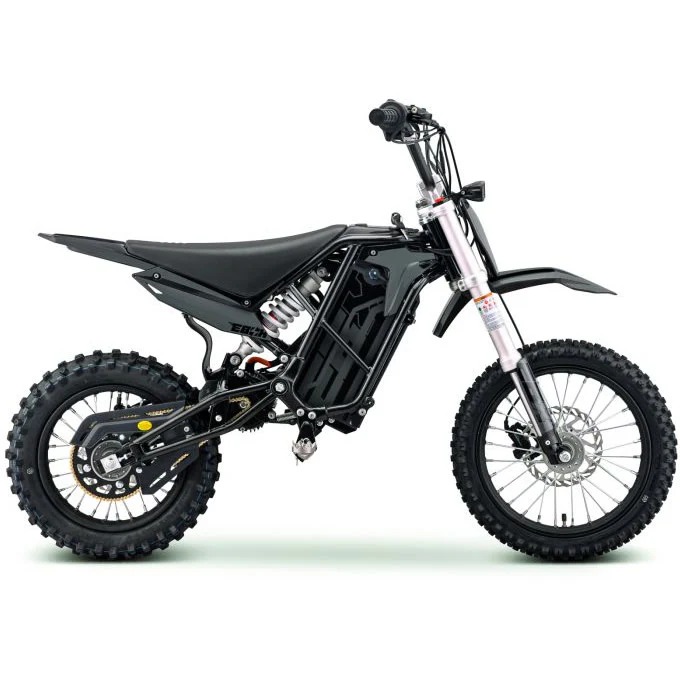

EBOX V3 72 BLACK
$2,500.00
SPECS
Frame type: V3 Double Cradle
Front wheel size: 14″
Rear wheel size: 12″
Fork: 150mm travel USD
Rear Suspension: Progressive mono shock 150mm travel
Bar Risers: Alloy Cast 36mm rise Ø22.2
Front brake: Hyraulic Disc (Right lever) e-moto brakes
Front disc: 180mm rotor, 4 bolt
Rear brake: Hyraulic Disc (Left lever) e-moto brakes
Rear disc: 180mm rotor, 4 bolt
Front tyre: Upgraded 60/100-14 Dirt
Rear tyre: Upgraded 80/100-12 Dirt
Chain: 219H 120L
Gearing: Front 10T, Rear 70T
Max load: 85kg
Handlebar: EBOX Race 6061 T6 29.5″ x 7″, with 3 piece crossbar and bar pad
Seat: EBOX fat seat
Motor: EBX PMSM motor with temp feedback and encoder
Rated Power: 5.4KW
Peak power: 6.3KW (8.5hp)
Max RPM: 9,000
Battery: 72v 25 Ah battery with smart BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch
Controller: 80 Amp Fardriver controller
Throttle: SURRON style full twist
Display: TFT odometer display with 3 speed modes and fault code analysis software
Connectors: Automotive connectors with sealed wiring harness
Headlight: LED headlight and switch
Charger: AC 100-240V, Output: 84V, 6A
FOR OFF ROAD USE ONLY
SPECS
Frame type: V3 Double Cradle
Front wheel size: 14″
Rear wheel size: 12″
Fork: 150mm travel USD
Rear Suspension: Progressive mono shock 150mm travel
Bar Risers: Alloy Cast 36mm rise Ø22.2
Front brake: Hyraulic Disc (Right lever) e-moto brakes
Front disc: 180mm rotor, 4 bolt
Rear brake: Hyraulic Disc (Left lever) e-moto brakes
Rear disc: 180mm rotor, 4 bolt
Front tyre: Upgraded 60/100-14 Dirt
Rear tyre: Upgraded 80/100-12 Dirt
Chain: 219H 120L
Gearing: Front 10T, Rear 70T
Max load: 85kg
Handlebar: EBOX Race 6061 T6 29.5″ x 7″, with 3 piece crossbar and bar pad
Seat: EBOX fat seat
Motor: EBX PMSM motor with temp feedback and encoder
Rated Power: 5.4KW
Peak power: 6.3KW (8.5hp)
Max RPM: 9,000
Battery: 72v 25 Ah battery with smart BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch
Controller: 80 Amp Fardriver controller
Throttle: SURRON style full twist
Display: TFT odometer display with 3 speed modes and fault code analysis software
Connectors: Automotive connectors with sealed wiring harness
Headlight: LED headlight and switch
Charger: AC 100-240V, Output: 84V, 6A
TECH
Charge time: 4-5 hours
Range: 28-31 miles (45-50Km)
Top speed: 55mph (89Km/h)
External adjustability: 3 riding modes
Frame construction: V3 wide frame (190mm) large capacity battery, race inspired revised geometry, Increased fork travel, increased pre-load and heavier oil, dropper footpeg bar.
Waterproof: IP54
Other: USB A + C charging port
Wheelbase: 980mm
Seat height: 650mm
Bike Weight: 51.2kg (112lbs)
Warranty: EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C’s for more information
